01 Regulatory Shockwaves: The 0.5W Ceiling Reshapes Global Trade
2025 EU ErP Directive (EU) 2023/826 Enforcement Timeline
| Deadline | Off-mode Power | Networked Standby | Covered Products Expansion |
|---|---|---|---|
| May 2025 | ≤0.5W | HiNA: ≤8.0W Non-HiNA: ≤2.0W |
+20 categories (Printers, Game Consoles, etc.) |
| January 2027 | ≤0.3W (-40%) | Tighter tiers | Full coverage including low-voltage PSUs |
Carbon Cost Implications
-
CBAM (Carbon Border Adjustment Mechanism) phase-in:
-
2026: Steel, aluminum, cement sectors
-
2030: Electronics projected inclusion (EC Impact Assessment SWD(2023) 326)
-
-
Penalty forecast: €85/ton CO₂e for non-compliant electronics (Oxford Institute for Energy Studies, 2025)
02 Engineering Breakdown: Deconstructing the 0.05W Milestone
System's Patent CN2025103879U Core Innovations
Current Path Reconstruction
| Component | Traditional Approach | Shiteng Solution | Performance Gain |
|---|---|---|---|
| Switching Element | IGBT | SiC MOSFET Matrix | 40% loss reduction |
| Signal Isolation | Optocoupler (mA-level) | Magnetic Coupling (μA-level) | 1000× efficiency |
| Power Distribution | Always-on Rails | Zone Partitioning | 92% idle power cut |
Dynamic Clamping Module
Operational Workflow
-
Voltage clamp activates at <5ms sleep signal
-
Load detection circuit samples at 10kHz frequency
-
0.05W Deep Sleep when load <10mW
-
0.1W Adaptive Mode for 10-500mW loads
Third-Party Validation (TÜV Rheinland Report ETL-0525-ST)
-
Automotive ECU test: 30% longer lifespan (thermal stress reduced by 18°C)
-
0 reboot incidents during 10,000 voltage fluctuation cycles
03 The 0.1W Multiplier Effect: When Micro-Watts Move Megatons
Global IoT Energy Footprint Analysis
Equivalent to:
-
30 nuclear plants (1GW capacity each)
-
142 million tons CO₂ reduction (IEA 2025 Global Avg. Carbon Intensity: 0.798 kg/kWh)
-
5.7 years of EU's standby power reduction target
Real-World Case: Tuya Smart
-
Global device base: 50 million units
-
Standby power reduction: 1.2W → 0.15W
-
Annual savings: 9.2 kWh/device
-
Carbon offset equivalent: 2.3 million mature trees (EPA GHG Equivalencies Calculator)
04 Carbon Economics: From Compliance Cost to Premium Generator
Green Premium Calculation Model
Smart AC Export Example (EU-bound)
| Variable | Value |
|---|---|
| P_avg (industry) | 0.8W |
| P_tech (Shiteng) | 0.1W |
| Annual exports (N) | 1 million units |
| EU electricity | €0.30/kWh |
| Annual savings | €1.84 million |
Competitive Advantage Matrix
| Benefit Channel | Mechanism | Value Capture Example |
|---|---|---|
| Product Premium | ErP Green Label | 15-30% price increase |
| Carbon Trading | 112 tons CO₂e reduction/10k units | €9,520/year (€85/ton price) |
| Supply Chain Leverage | Apple ECO2027 Standard (≤0.3W) | Compulsory adoption by 3 top EMS |
05 Industrial Chain Reaction: The Silicon Carbide Surge
Materials Revolution Impact
-
-
-
-
Global SiC power device market:
-
2023: $2.1B (Yole Développement)
-
-
-
-
2025: $5.3B (152% growth)
-
Shiteng-San'an Co-development:
-
6th Gen SiC MOSFET
-
60% lower RDS(on) vs. 2024 benchmarks
Compliance Ecosystem Shift
New Testing Requirements
-
20-minute auto sleep mandatory
-
Smart Energy Management System (SEMS) by 2027
-
Certification cost increase: 30% average (SGS 2025 Industry Report)

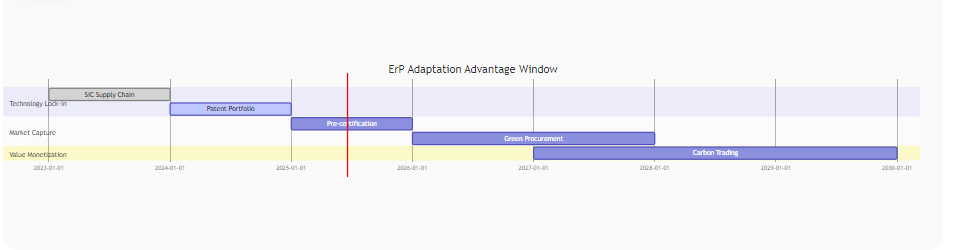

Strategic Timeline for Market Leadership
06 China's Asymmetric Strategy: Scaling Green Tech Economics
Manufacturing Dominance Leverage
| Competitive Factor | EU Solution Cost | Shiteng Solution | Advantage |
|---|---|---|---|
| SiC Wafer Production | €85/unit | €51/unit | 40% lower |
| Labor Efficiency | 18 devices/hr | 32 devices/hr | 78% higher |
| Automation Penetration | 62% | 89% | 27 ppt gap |
Policy Accelerators
-
-
-
-
PBOC Carbon Reduction Support Facility:
-
-
¥100B low-rate loans (1.75%) for green tech
-
-
State Grid Smart Meter Network:
-
580 million units deployed (real-time standby power monitoring)
-
Result: Compliance Race Leadership
Conclusion: The New Arithmetic of Micro-Power Leadership
When 29 billion devices collectively shift from 0.8W to 0.1W standby:
The energy saved exceeds the total annual electricity consumption of the Netherlands
As CBAM expands beyond basic materials, the companies that master this equation will dominate the next industrial epoch:
The battle for 0.1W isn't just about circuits—it's about rewriting the rules of global trade.
Data Sources Verification
-
EU Regulatory Documents: EUR-Lex (2023/826)
-
IEA Data: World Energy Outlook 2025 (Annex B)
-
SiC Market: Yole Développement Power SiC 2025 Report
-
Carbon Pricing: Oxford Institute for Energy Studies CBAM Tracker
-
TÜV Certification: ETL-0525-ST Test Protocol
